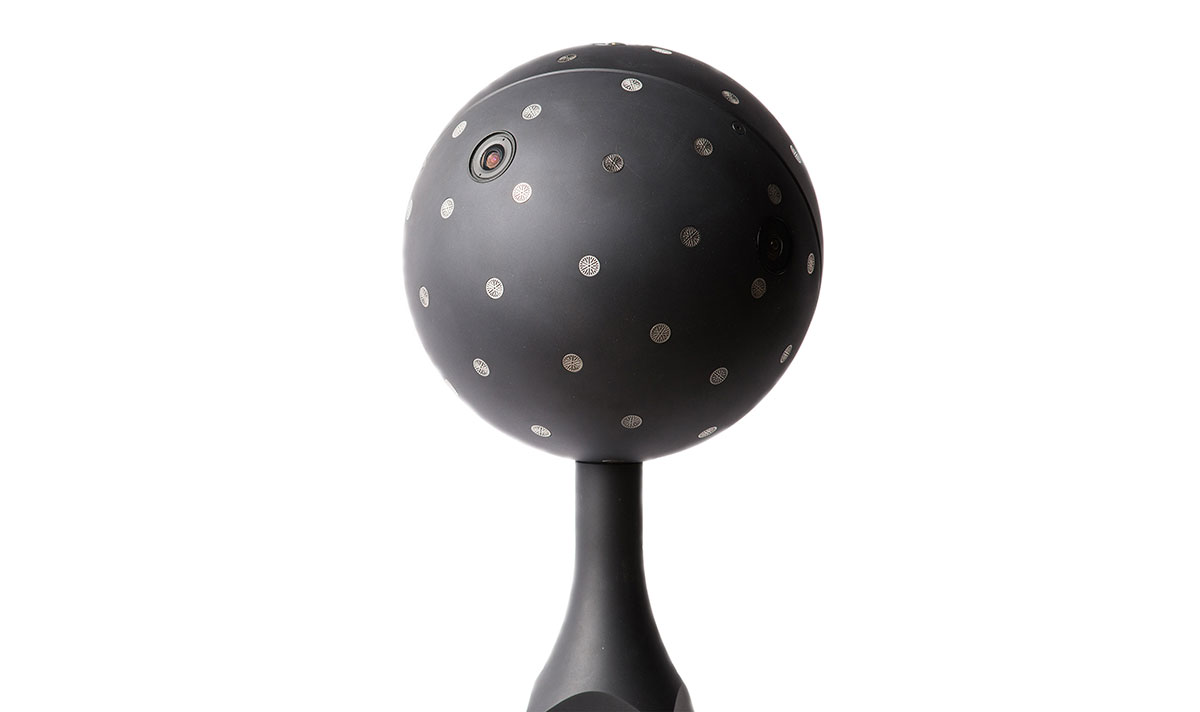

The VisiSonics 5/64 Audio/Visual Camera consists of 5 video cameras and 64 microphones mounted on the surface of an aluminum sphere. The spherical architecture and associated algorithms allow the creation of an omni-directional acoustic image of the environment. The 5 HD video cameras simultneously generate an associated omni-directional panoramic video stream of the captured environment. Audio and video are synchronized and co-registered as a combined stream using patented algorithms. The convergence of audio and video capture allows for the visualization of sound sources and their interaction with the environment to be understood in real-time.
VisiSonics 5/64 音視頻聲學相機由5個攝像機和64個麥克風組成，安裝在一個鋁合金球體表面。該球形結構和相關算法精準地復原了環境全景聲像圖，該5個高清視頻攝像頭同步工作從而捕獲了全方位的環境視覺景觀，采用了獨特的專利算法能使音視頻完美地結合起來，音視頻的同步獲取實現了聲源的可視化，并且能對環境狀況進行實時解析。
With the “Audio Camera,” and the FINDr software, users can capture, store, retrieve and process real-time integrated and synchronized audio and visual information. The captured data incorporates all aspects of the audio-visual world that an individual would experience if he or she were physically present where the Audio/Visual Camera were located. The processing software and storage system allows you to do this in real-time or to record sessions for post analysis.
使用聲學相機和FINDr 軟件，用戶可以錄制、存儲、檢索和處理實時集成和同步音視頻資料，捕獲的數據包含了音視頻的全部信息，如果他或她在現場則能深刻地體驗到這些。處理軟件和存儲系統能夠讓你實時地做這些事情，也可以錄制下來供事后分析。
Audio Camera Applications
聲學相機應用
·Noise Source Identification
噪聲源識別
·Ambisonics
環境高保真度立體聲
·Architectural Acoustics and Room Measurement
建筑聲學和室內音質測量
·Telepresence
遠場呈現
·Cross-Modal Attention and Saliency
跨模式備注和顯著性
·Psychophysics
心理物理學
·Audio-Visual Tracking
音視頻跟蹤
·Audio/Visual Recording and Analysis
音視頻記錄和分析
·Meeting Recording
會議記錄
·Intelligibility
清晰度
·Noise Measurement
噪聲測量
5/64 Audio/Visual Camera In-Depth
5/64音視頻全景聲學相機
The AudioCamera’s spherical microphone architecture provides an omni-directional acoustic image of the environment.
聲學相機的球面麥克風架構提供了一個全方位的環境聲學圖像。
The microphone signals are conditioned using individualized pre-amp circuits and then converted to digital by a dedicated analog to digital converter. The digitized acoustic data are sampled at 44.1 kHz per channel and collected by an internal high performance Field Programmable Gate Array (FPGA) based processor where they are managed, formatted and converted into a single USB 3.0 data stream. FINDr software, operating on a standard PC with an internal NVIDIA GPU, accepts the USB data stream and performs the user selected functions in real-time.
麥克風信號使用個性化的前置放大器電路，然后由專用的模擬數字轉換器轉換為數字信號。數字化的聲學數據以每通道44.1 kHz采樣，并由一個內部高性能現場可編程門陣列(FPGA)基于處理器收集，在那里他們被管理，格式化和轉換成一個單一的USB 3.0數據流。FINDr軟件在內置NVIDIA GPU的標準PC上運行，接受USB數據流并實時執行用戶選擇的功能。
The auditory scene can be decomposed into its spherical harmonic components up to order 7. This allows for increased spatial isolation of acoustic sources in the environment. Additionally, the scene can be decomposed into filtered plane-waves, and can be beamformed into multiple real-time beams. A resolution of up to two degrees is possible for higher frequency beams.
聽覺場景可以分解成高達7階的球面諧波分量。這使得聲源在環境中的空間隔離度提高。另外，可以將場景分解為濾波后的平面波，并可以將其波束形成多個實時波束。高頻波束的分辨率可以達到2度。
The video camera array generates an associated omni-directional panoramic visual scene that is synchronized with the live audio stream.
視頻攝像機陣列（全景聲學相機）生成了一個與實時音頻流同步的相關全方位即全景視覺場景。
Five video cameras are integrated into the VisiSonics 5/64 Audio/Visual Camera to facilitate the panoramic scene capture. Each of the color video cameras has a resolution of 1328×1048 pixels. The captured video is synchronized with the audio data via an internal FPGA processor. The multi-camera image streams are collected via an internal USB 3.0 interface and sent to a laptop over a single USB 3.0 cable.
VisiSonics 5/64音頻/視頻攝像頭集成了五個攝像頭，以便于全景場景捕捉。每臺彩色攝像頭的分辨率為1328×1048像素。捕獲的視頻通過內部FPGA處理器與音頻數據同步。多攝像頭圖像流通過內部USB 3.0接口收集，并通過一根USB 3.0電纜傳輸到筆記本電腦。
Included with the all Audio Cameras is the Frequency Identification and Noise Detector (FINDr) software.
所有的聲學相機里都包含頻率識別和噪聲探測器（FINDr）軟件。
With FINDr, you have the ability to visualize and analyze your recorded data. The FINDr software gives you instant access to an integrated audio/video panorama, and breaks down the data for you in helpful graphs for both time and frequency domain analysis.
使用FINDr，您可以可視化和分析記錄的數據。FINDr軟件使您能夠即時訪問集成的音頻/視頻全景圖，并將數據分解為有用的圖形，以便進行時域和頻域分析。
See our Software page for more information.
更多的信息請參閱我們的軟件頁面
